BioMem™ Membrane Biological Reactor
Next-Generation Biological Filtration for High-Purity Water Reuse
BioMem™ is a Membrane Bioreactor (MBR) next-generation wastewater treatment platform that seamlessly combines biological degradation with membrane filtration to deliver exceptional effluent quality. By integrating an aerobic biological process with ultrafiltration or microfiltration membranes, the system effectively separates treated water from suspended solids and microorganisms, eliminating the need for conventional clarifiers.
HOW IT WORKS

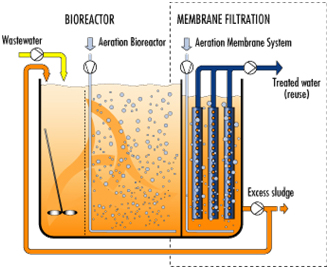

BioMem™ process integrates a biological reactor, where organic matter is biologically degraded, with membrane filtrationmodulesthat act as a physical barrier to solids and pathogens. This eliminates the need for secondary clarifiers or tertiary filtration, producing highly purified effluent in a single step.
Typical Performance:
- BOD < 5 mg/L
- TSS < 1 mg/L
- Turbidity < 0.1 NTU
- Complete removal of suspended solids and pathogens
KEY ADVANTAGES
- Superior Water Quality: Crystal-clear effluent suitable for reuse or discharge.
- Compact & Modular: Smaller footprint and scalable capacity.
- Stable Operation: Resilient against hydraulic and organic load fluctuations.
- Reduced Sludge: High solids retention lowers waste generation and disposal costs.
- Automated Control: Smart monitoring optimizes energy use and membrane performance.
- Seamless Integration: Designed to pair with InfraCorp’s advanced reuse and ZLD technologies
APPLICATIONS
- Municipal wastewater treatment and reuse
- Industrial effluent treatment (chemical, food & beverage, pharmaceutical, textile, etc.)
- High-strength wastewater streams
- Advanced water reuse and recycling projects
- Integration with ZLD (Zero Liquid Discharge) and polishing systems
Typical Performance:
- BOD < 5 mg/L
- TSS < 1 mg/L
- Turbidity < 0.1 NTU
- Complete removal of suspended solids and pathogens
KEY TECHNOLOGY FEATURES
Integrated Biological & Membrane Filtration:
BioMem™process leverages a high concentration of active biomass to degrade organic pollutants, followed by membrane filtration to achieve superior solid-liquid separation. This results in crystal-clear effluent with very low turbidity and near-zero suspended solids.
High-Quality Effluent for Reuse:
The system consistently achieves BOD < 5 mg/L, TSS <1 mg/L, and turbidity < 0.1 NTU, making it suitable for direct discharge or reuse in industrial cooling, irrigation, or further polishing for potable applications.
Compact & Modular Design:
BioMem™systems operate at high mixed liquor suspended solids (MLSS) concentrations, allowing for a smaller biological reactor volume and reduced plant footprint compared to conventional activated sludge systems.
Operational Stability & Flexibility:
The robust process design maintains performance under fluctuating hydraulic or organic loads, ensuring stable treatment even in challenging industrial wastewater scenarios.
Reduced Sludge Production:
Higher solids retention time (SRT) improves biomass yield efficiency, minimizing excess sludge generation and lowering disposal costs.
Automated & Intelligent Control:
InfraCorp integrates smart monitoring and control systems to optimize aeration, backwashing, and cleaning cycles, reducing energy consumption and extending membrane life.
BioMem™ is an advanced membrane bioreactor system that combines biological treatment with membrane filtration to produce high-purity effluent for municipal and industrial reuse. Compact, efficient, and easy to integrate with ZLDgrated Biological & Membrane Filtration — All in One System

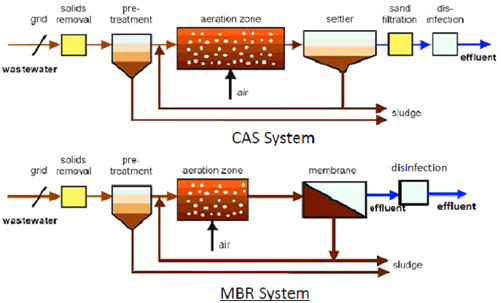

Process Flow Steps (Icons / Infographics):
-
- Biological Treatment: High biomass concentration breaks down organic matter efficiently.

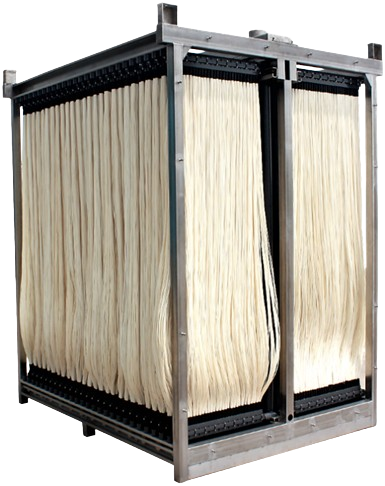

- Membrane Filtration: Ultrafiltration or microfiltration modules act as a physical barrier.
- Effluent Discharge or Reuse: Treated water meets or exceeds global standards.
- Sludge Management: Reduced sludge generation lowers disposal costs.
INTEGRATED WITH INFRACORP TECHNOLOGIES
BioMem™can be combined with:
- Reclaim™ — Advanced water reuse platform
- CLRO™ — High-recovery thermal-membrane hybrid RO
- ZeroFluoro™ — PFAS destruction and crystallization
- Min™ZLD — Compact Zero Liquid Discharge solution
Together, these technologies deliver complete and sustainable water cycle management for industries and cities
